BLE 41
Bluetooth Low Energy OEM Module, Bluetooth Class 1, Spec V4.0
Coming Soon...

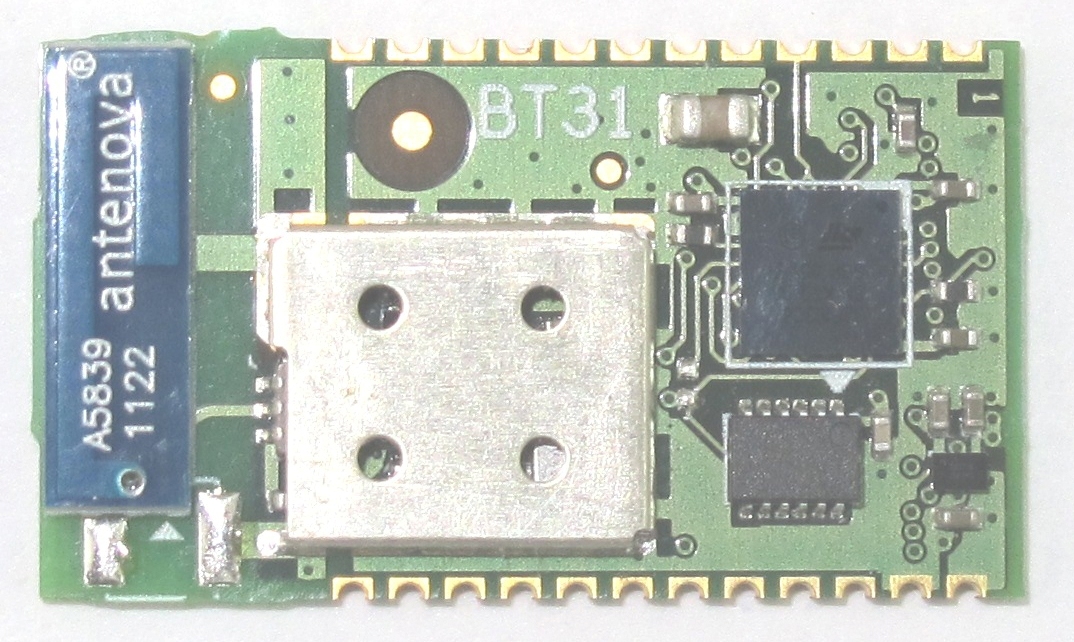

BT 31
Ultra Low Power Bluetooth OEM Module, Bluetooth Class 1, Spec V3.0
Supporting the next generation Bluetooth, specification v3.0, the BT 31 delivers a multifunction solution in a ready to use module:
- Bluetooth complete RF ready module
- Quick time-to-market
- Easy to customize
BT 31 Datasheet, BT Hardware Design Guide, abSerial Reference Guide, abSerial User Guide
BT 32
Micro-Sized Bluetooth OEM Module, Bluetooth Class 2, Spec V3.0
Supporting the next generation Bluetooth, specification v3.0, the BT 32 delivers a multifunction solution in a ready to use module:
- Bluetooth complete RF ready module
- Quick time-to-market
- Easy to customize
BT 32 Datasheet, BT Hardware Design Guide, abSerial Reference Guide, abSerial User Guide
BT 33
Micro-Sized Bluetooth OEM Module with integrated Antenna, Bluetooth Class 2, Spec V3.0
Supporting the next generation Bluetooth, specification v3.0, the BT 33 delivers a multifunction solution in a ready to use module:
- Bluetooth complete RF ready module
- Quick time-to-market
- Easy to customize
BT 33 Datasheet, BT Hardware Design Guide, abSerial Reference Guide, abSerial User Guide
BT 11
Long Range Bluetooth OEM Module, Bluetooth Class 1, Spec V2.1 +EDR
With class 1 power of up to +17dBm, the BT 11 module has one of the best ranges in the industry.
The BT 11 module includes 16 general purpose input/output lines, several serial interface options, analog-to-digital inputs, and up to 2M bps data throughput.
The BT 11 is a surface mount PCB module that provides fully embedded, ready to use Bluetooth wireless technology. The reprogrammable flash memory contains embedded firmware for serial cable replacement using the Bluetooth SPP profile. Other popular Bluetooth profiles, such as OBEX, are also available.
Customized firmware for peripheral device interaction, power optimization, security, and other proprietary features may be supported and can be ordered pre-loaded and configured.
BT 11 Datasheet, BT Hardware Design Guide, abSerial Reference Guide, abSerial User Guide
BT 22
Micro-Sized Bluetooth OEM Module, Bluetooth Class 2, Spec V2.1 +EDR
Our micro-sized Bluetooth module is the smallest form factor available providing a complete RF platform. The BT 22 is designed for maximum performance in a minimal space and includes 4 general purpose and A/D IO lines, several serial interface options, and up to 2M bps data throughput.
The BT 22 is a surface mount PCB module that provides fully embedded, ready to use Bluetooth wireless technology. The reprogrammable flash memory contains embedded firmware for serial cable replacement using the Bluetooth SPP profile. Other popular Bluetooth profiles, such as OBEX, are also available.
Customized firmware for peripheral device interaction, power optimization, security, and other proprietary features may be supported and can be ordered pre-loaded and configured.
BT 22 Datasheet, BT Hardware Design Guide, abSerial Reference Guide, abSerial User Guide
BT 23
Micro-Sized Bluetooth OEM Module with Integrated Antenna Bluetooth Class 2, Spec V2.1 +EDR
Our micro-sized Bluetooth module, with integrated antenna, is the smallest form factor available providing a complete RF platform. The BT 23 is designed for maximum performance in a minimal space and includes 6 general purpose and ADC/DAC IO lines, several serial interface options, and up to 2M bps data throughput.
The BT 23 is a surface mount PCB module that provides fully embedded, ready to use Bluetooth wireless technology. The reprogrammable flash memory contains embedded firmware for serial cable replacement using the Bluetooth SPP profile. Other popular Bluetooth profiles, such as OBEX, are also available.
Customized firmware for peripheral device interaction, power optimization, security, and other proprietary features may be supported and can be ordered pre-loaded and configured.
BT 23 Datasheet, BT Hardware Design Guide, abSerial Reference Guide, abSerial User Guide
BT 30
Micro-Sized Bluetooth HCI Module, Bluetooth Class 1, Spec V3.0 +EDR
Amped RF Tech presents our BT30 HCI module, supporting Bluetooth specification v3.0. The BT30 is a low cost Bluetooth module for higher volume customers, and is intended to help customers shorten product development cycles and reduce cost. We offer a full upper layer stack Amped UP, which may be added to a customers host processor, and combined with the BT30, for a complete Bluetooth solution.
BT 30 Datasheet, BT Hardware Design Guide, abSerial Reference Guide, abSerial User Guide
ZB 11
ZigBee Long Range OEM Module
With high power of up to +17dBm, the ZB 11 module has one of the best ranges in the industry.
The ZB 11 module includes 16 general purpose input/output lines, several serial interface options, analog-to-digital inputs, and up to 2M bps data throughput.
The reprogrammable flash memory contains embedded firmware for serial cable replacement using the ZigBee SPI profile. Other popular profiles, such as JTAG, RF4CE are also available.
Customized firmware for peripheral device interaction, power optimization, security, and other proprietary features may be supported and can be ordered pre-loaded and configured.
ZB 22
ZigBee Micro-sized OEM Module
Our micro-sized ZigBee module is the smallest form factor available providing a complete RF platform. The ZB 22 is designed for maximum performance in a minimal space and includes 4 general purpose and A/D IO lines, several serial interface options, and up to 2M bps data throughput.
The reprogrammable flash memory contains embedded firmware for serial cable replacement using the ZigBee SPI profile. Other popular Bluetooth profiles, such as JTAG, RF4CE, are also available.
Customized firmware for peripheral device interaction, power optimization, security, and other proprietary features may be supported and can be ordered pre-loaded and configured.
ZB 23
ZigBee Micro-Sized OEM Module
Our micro-sized ZigBee module, with integrated antenna, is the smallest form factor available providing a complete RF platform. The ZB 23 is designed for maximum performance in a minimal space and includes 6 general purpose and ADC/DAC IO lines, several serial interface options, and up to 2M bps data throughput.
The reprogrammable flash memory contains embedded firmware for serial cable replacement using the ZigBee SPI profile. Other popular Bluetooth profiles, such as JTAG, RF4CE, are also available.
Customized firmware for peripheral device interaction, power optimization, security, and other proprietary features may be supported and can be ordered pre-loaded and configured.
